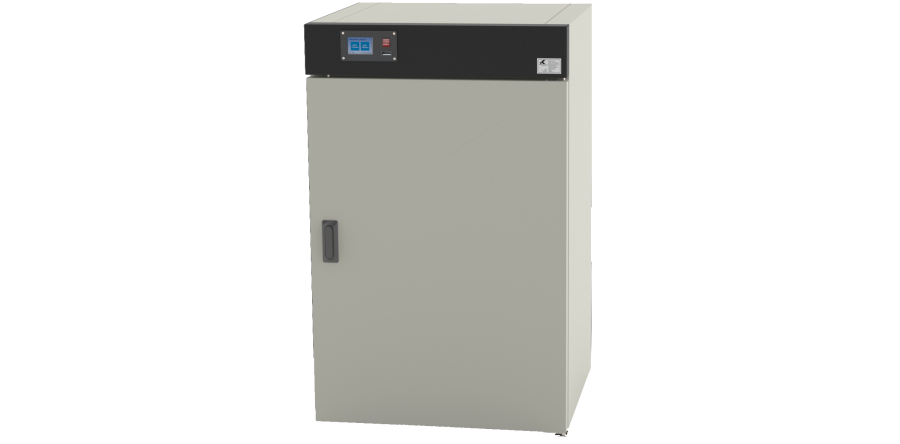

STERILIZER

Dry heat sterilization eliminates, removes, kills or deactivates all forms of life and other biological agents (such as fungi, bacteria, viruses, spore forms and prions) by raising the temperature of an item to above 160°C (320°F). Heated air or steam can be used in this process. Our lab sterilizers are ideal for laboratory and pharmaceutical applications.

Dry heat ovens have several advantages of steam autoclaves, including higher temperatures and the ability to sterilize materials that might be damaged to steam or are impenetrable to moist heat. It is the most effective sterilization method, with lower energy and cost.



Unlike its competitors, Inotek Solutions uses its own, sophisticated temperature management system. High accuracy and minimal fluctuations are achieved with the help of PID algorithm and Pt1000 temperature measuring probe. Heater operation and temperature can be monitored on a 3.5 ”LCD touch screen.



Set temperature resolution 0.1
Temperature fluctuations ±1°



Interior: AISI 304

Exterior: Metal Quality - 08kr



  • Automatic fuse B10A
  • Overheat protection - thermal switch
  • Electronic control management
  • Pt1000 temperature probe
  • 5” LCD Touch screen for easy and intuitive control and monitoring
  • Safety relay for electrical protection against temperature deviations
  • Thermal switch for mechanical thermal protection
Model 80L 300L
Volume (L) 90 320
Internal dimensions (mm) 400 х 500 х 450 640 х 940 х 540
External dimensions (mm) 550 х 820 х 640 785 х 1260 х 730
Weight (Kg) 65 120
Voltage 230V 50Hz
Power 1200W 2400W
Set temperature range 5°C above the ambient to 250°C
Set temperature resolution 0.1°C
Read temperature resolution 0.1°C
Operating temperature 20°C to 40°C
